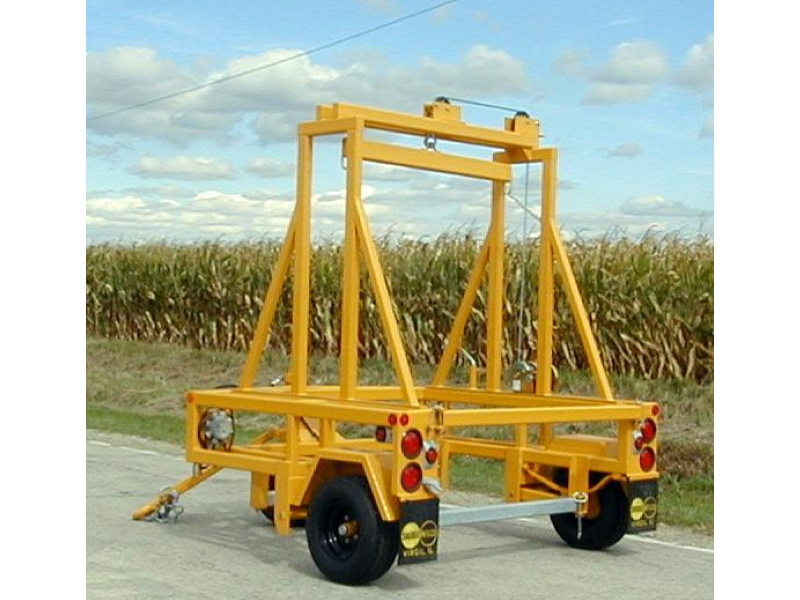

2022 Sauber Mfg. 1599-TD Transformer Dolly

Features may include:

Construction

2″ x 3″ and 3″ x 3″ Tubing frame w/ rocker arm suspension rear and coil spring suspension front single wheel. 2″ x 3″ Tubing gantry structure for elevation and off-loading transformer. Zero weight front tongue w/ full steering articulation. Upper rear gate unlocks and swings via quick pin to allow loading and off-loading transformer. Front and rear support bars remove for elevation and lowering.

Winch System

Corrosion resistant 2000 lbs spur gear winch w/ brake and 5/16″ x 25′ galvanized aircraft cable w/ hook w/ safety latch. Stainless steel springs and fasteners with bronze bearings and protective gear covering 3/8″ Dia loops welded each end of beam for customer provided riggging. High strength nylon pullies w/ storage provision for crank.

Registration

High-impact resistant Xenoy construction provides protection from UV and weather-related degradation. Includes gasket, water shield & poly bag.

Fasteners

Bolts under ½”: Stainless steel; ½” and Above: Zinc-plated Grade 8; lock nuts used exclusively.

Fenders

10-gauge smooth steel with 1″ lip return and mud flaps.

Galvanized Pintle Eye and Hitch Extension

A galvanized 3” I.D., 60,000 lbs-capacity pintle eye is attached to our 11″ reversible hitch extension, which is adjustable to 6 different positions to properly match your towing vehicles. Our industry-leading hitch extension is made from hot-dipped galvanized cast-steel. Both the pintle eye and hitch extension are installed with grade-8 fasteners.

1/2" Safety Chain

Zinc plated, grade-70 1/2” chain rated at 45,200 lbs breaking strength extending 23” beyond pintle eye. Zinc plated, grade-70 clevis hook with safety latch rated at 52,000 lbs breaking strength. Assembly connected via 4”x4”x1/2” wall tubing continuously welded to trailer frame with inverted crucifix and 7/8”-9 grade-8 fastener with SAE high strength washer and lock nut securing chain in crucifix.

LED Lighting & Electrical

LED sealed beam wiring system with stop / turn/ tail lights recessed in a structural tubing bumper to meet FMVSS 108 ensure long life of these signaling lights.  Automotive-grade wiring harness features SAE bullet-style connectors at each light, ensure easy replaceability of individual lights.  SAE 7-way socket protected top sides and back with almag housing.  Sealed breakaway with charging circuit and LED battery condition indicator with 450 C.C.A. maintenance-free battery.  Recessed ABS license plate housing with integrated lamp provide very high protection of both the license plate and its illumination.

Wheel Nut Indicators

Our wheel nuts are torqued to manufacturer specifications, and are then fitted with high-visibility wheel nut indicators. The indicators are fitted in a uniform pattern, so when a wheel nut has loosened, the indicator will become out of sequence. The wheel nut indicators are also heat sensitive. If there is a binding brake or seized bearing, the heat is transferred through the stud and nut. If this temperature exceeds 120º C (248º F), the indicator will start to blister around the circumference and eventually start to distort. Pre-flight walkaround checks now can include wheel nut checks.

Galvanized Finish

Hot-dip galvanize entire trailer including galvanized wheel rims. Undercarriage and all non-galvanized attachments grit blasted, primed and painted before assembly on trailer and installed w/ serviceable fasteners only. 10-year galvanized finish warranty.

Warranty

Sauber Manufacturing leads the field with a 10-year, comprehensive, trailer and truck platform warranty. This warranty comes at no charge to our customers and we have the financial strength and integrity to back it up. Our warranty is an extension of who we are and demonstrates the quality of our builds.

• 10-Year Structural, parts & labor on all Sauber manufactured components
• 10-Year Galvanized finish warranty
• 3-Year Total parts & labor coverage
• All warranty support provided directly from Sauber Mfg. Co.
• Customer labor reimbursement @ $80/hour

Drawings

Solid model engineering drawings submitted with bid must include trailer detail and will be approved prior to production. Bids submitted without solid model drawings cannot be evaluated.
