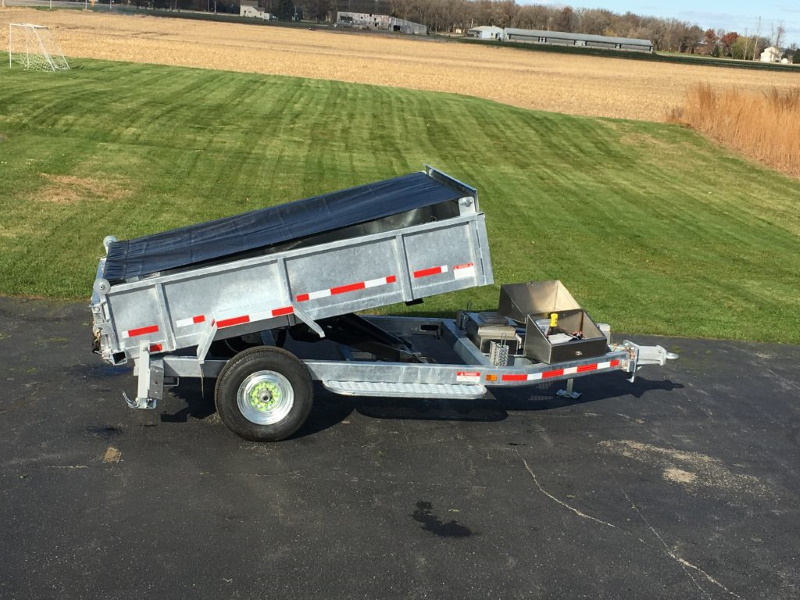

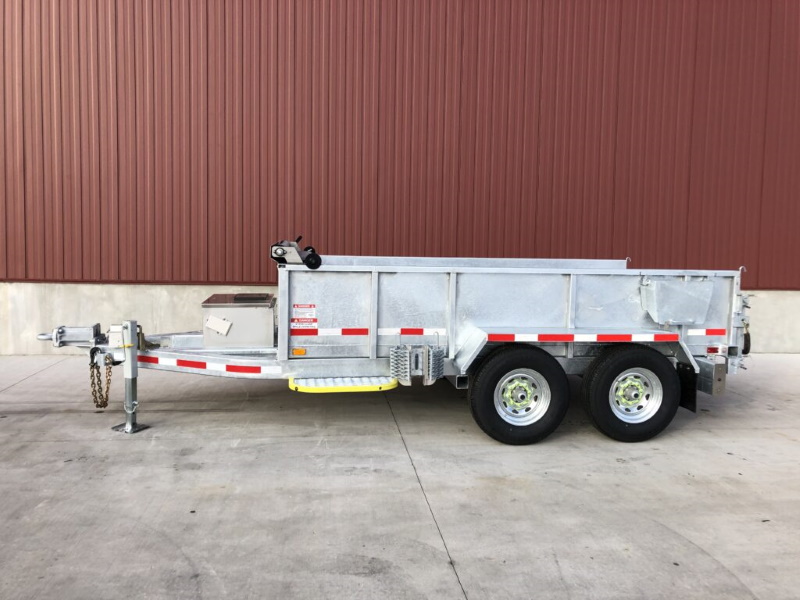

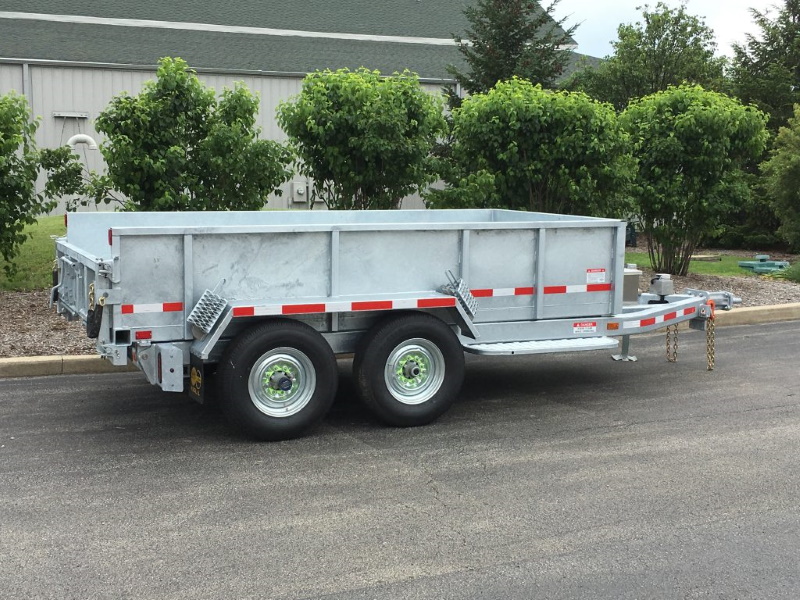

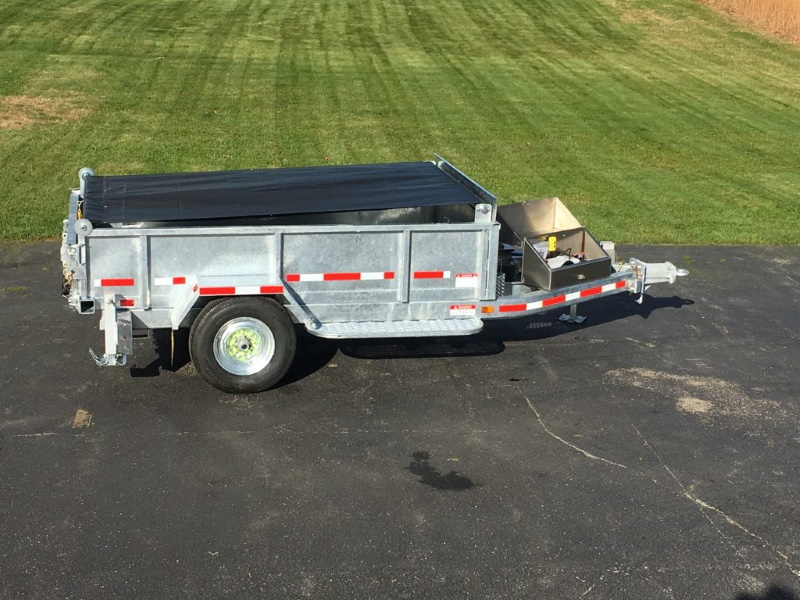

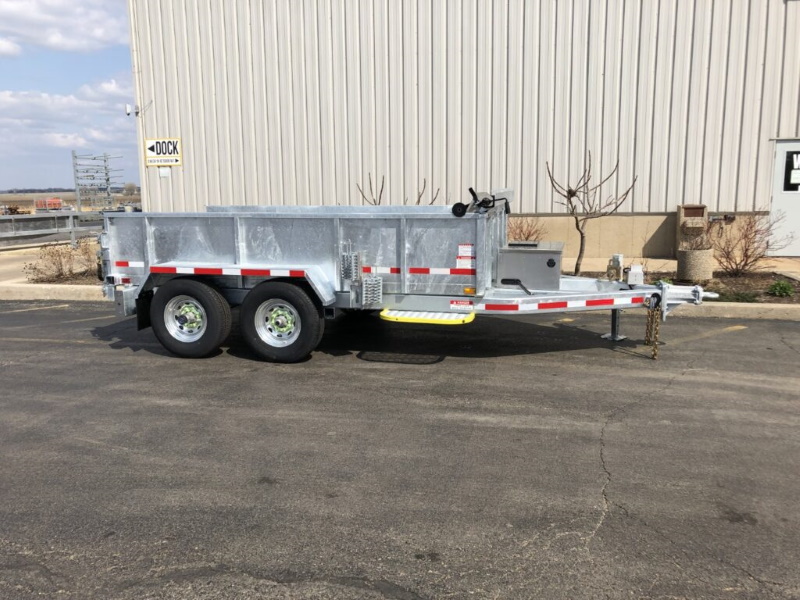

2022 Sauber Mfg. 1599-DT Dump Trailer

Features may include:

Construction

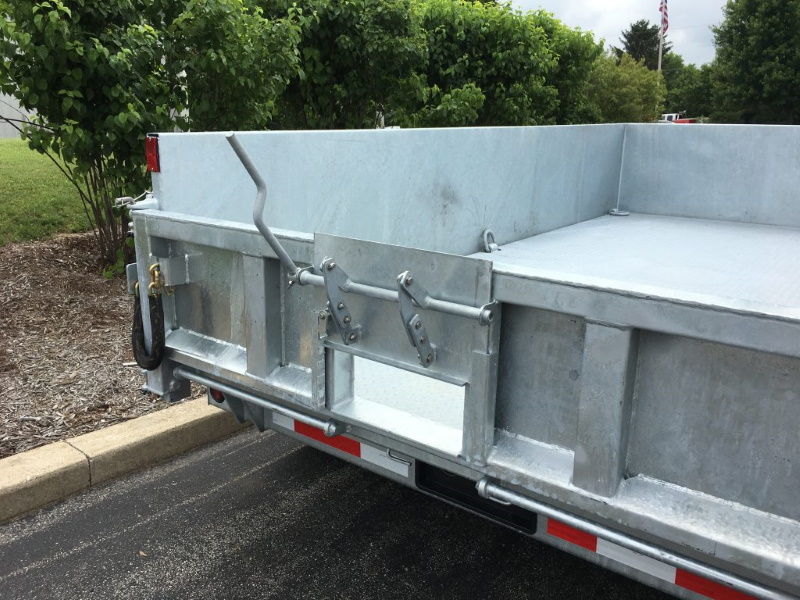

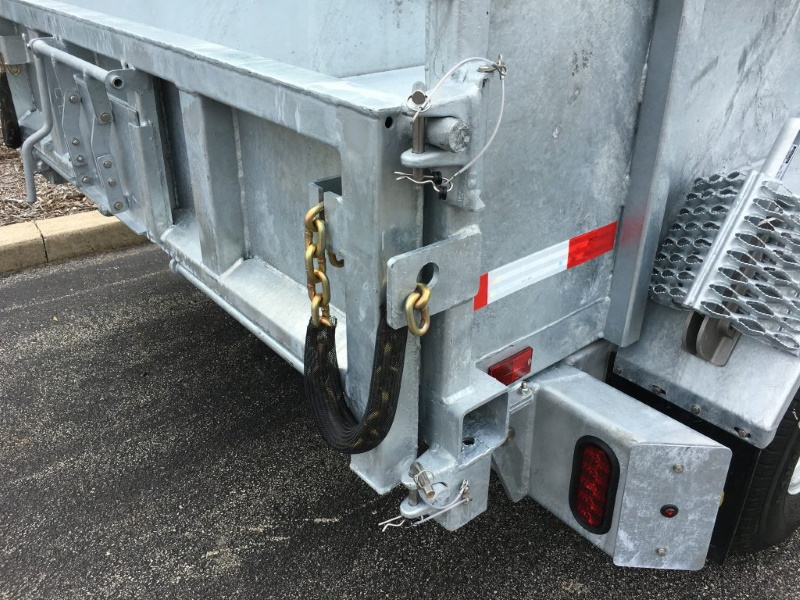

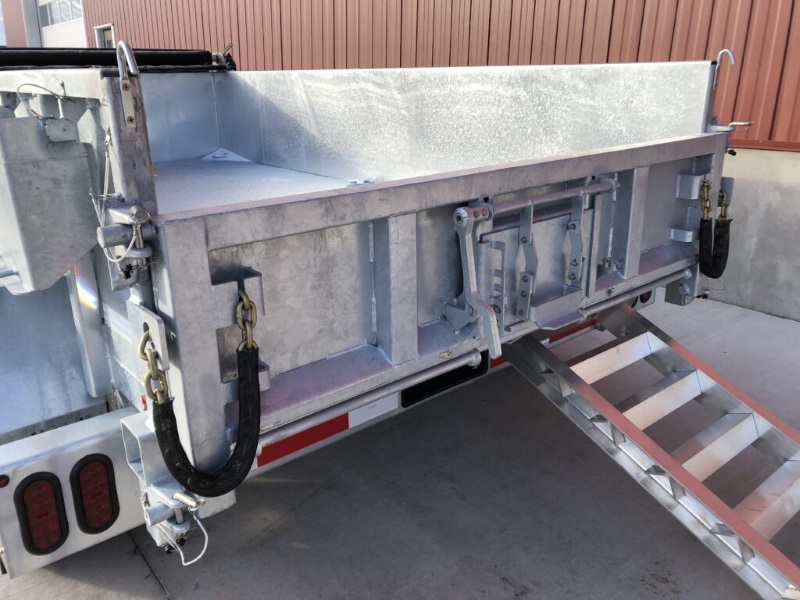

4″ x 6″ Bent tubing mainframe w/ tubing cross stringers and longitudinal reinforcement tongue area. 2″ x 2″ Reinforced tubing side frame w/ 24″ high 12 gauge sides and bulkhead. Stake pockets for future addition of cargo side extensions w/ 2″ x 3″ reinforced tubing side frame. 3/16″ Treadplate floor bolted to reduce effects of galvanizing warping. 16″H Center split hinged heavy duty tailgate with stainless steel retainer pin and provision for pinning against trailer side. Expanded metal lined towing area. (6) Heavy duty, quick flip d-rings installed (3) each side – flush to deck when not in use.

Hoist

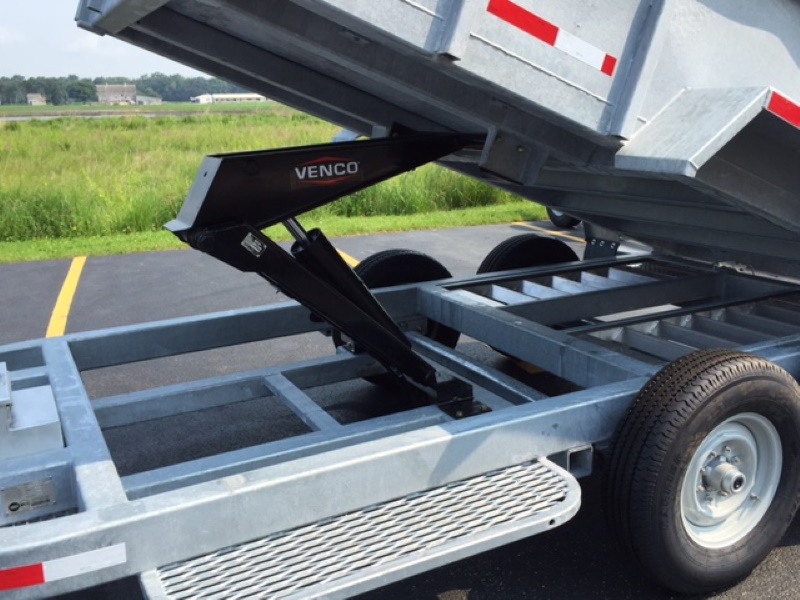

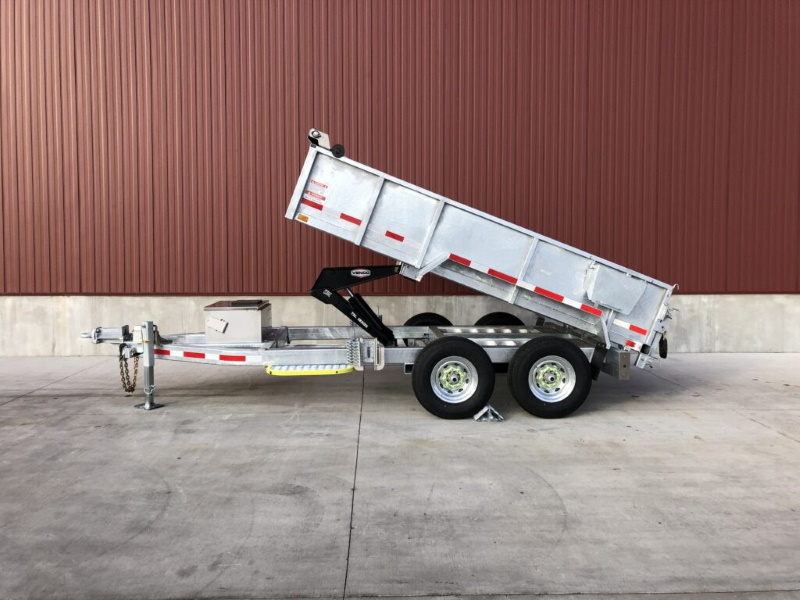

10000# Capacity @ 2500 PSI w/ single cylinder scissors hoist and velocity fuse to protect on downward stroke. Bolt on installation providing 45-degree dump angle w/ stainless steel pivot points w/ oil impregnated bronze bearing sleeves.

Outriggers

Individually controlled hydraulic outriggers with trailer leveling capability with counterbalance valves.

Power System

12VDC Power Unit with power up and down. 600 CCA deep cycle battery w/ 4W solar charging panel for battery conditioning. Fully automatic 10A charger supplied w/ 10′ cord for quick charge. Remote pendent actuation w/ 15′ reach. Entire power system contained in stainless steel, lockable, weatherproof box w/ charging and remote rubber lined cord slots to allow cover to be closed during use and charging.

MOTOR

12VDC, 100A, heavy duty.

STARTING

Integral starting actuated by remote pendant.

CONTROLS

Integral bi-directional control valve.

PUMP

.1324 Cu-in displacement, horizontal mount w/ 3000 PSI @ 1 GPM output.

TANK

2 Gallon reservoir w/ #32 anti-wear hydraulic fluid.

WARRANTY

One year full parts coverage.

Registration

High-impact resistant Xenoy construction provides protection from UV and weather-related degradation. Includes gasket, water shield & poly bag.

Fasteners

Bolts under ½”: Stainless steel; ½” and Above: Zinc-plated Grade 8; lock nuts used exclusively.

Mud Flaps

Rubber mud flaps provided.

Front Jack (Model# 17754)

17754 EZ-Up side-winding w/ 10,000# static capacity jack w/ heavy duty AL-Bronze travel swivel. 8”x2” Caster w/ mold-on polyurethane tread mechanically bonded to an aluminum core – 28″ travel, 1650 lbs cap.

Galvanized Pintle Eye and Hitch Extension

A galvanized 3” I.D., 60,000 lbs-capacity pintle eye is attached to our 11″ reversible hitch extension, which is adjustable to 6 different positions to properly match your towing vehicles. Our industry-leading hitch extension is made from hot-dipped galvanized cast-steel. Both the pintle eye and hitch extension are installed with grade-8 fasteners.

3/8” Safety Chain

Zinc-plated, grade-70 3/8” chain rated at 26,400 lbs breaking strength extends 23” beyond pintle eye. Zinc-plated, grade-70 clevis hook with safety latch rated at 26,400 lbs breaking strength. Assembly connected via 3”x3”x3/8” wall tubing continuously welded to trailer frame with inverted crucifix and 3/4”-10 grade-8 fastener with SAE high-strength washer and lock nut securing chain in crucifix.

Binders

(4) BOA worm gear drive winch binder w/ stainless steel mandrel and 4″W x 20’L nylon strap w/ D-ring—5,500# WLL. Galvanized crank handle w/ on-board storage. Heavy duty hooks installed opposite binders to secure D-ring. Dual binder pipes with PVC surface @ I-beam bolsters to maximize pole wrap.

LED Lighting & Electrical

LED sealed beam wiring system with stop / turn/ tail lights recessed in a structural tubing bumper to meet FMVSS 108 ensure long life of these signaling lights.  Automotive-grade wiring harness features SAE bullet-style connectors at each light, ensure easy replaceability of individual lights.  SAE 7-way socket protected top sides and back with almag housing.  Sealed breakaway with charging circuit and LED battery condition indicator with 450 C.C.A. maintenance-free battery.  Recessed ABS license plate housing with integrated lamp provide very high protection of both the license plate and its illumination.

Solar Power

We include our Model 8854 Solar System with a single solar panel with 4.3W of charging as standard equipment on all trailers we manufacture that utilize electric brakes or are equipped with an electric start Hydraulic Power Source. We have made this improvement to reduce customer maintenance costs, increase “up time” in field operations and provide the highest assurance to your users and community that the system will work as designed in the event the of a breakaway.

Chocks

(2) Galvanized All Weather # 8500 w/ gripstrut design and bolt-on, cast chock-holders.

Galvanized Finish

Hot-dip galvanize entire trailer including galvanized wheel rims. Undercarriage and all non-galvanized attachments grit blasted, primed and painted before assembly on trailer and installed w/ serviceable fasteners only. 10-year galvanized finish warranty.

Warranty

Sauber Manufacturing leads the field with a 10-year, comprehensive, trailer and truck platform warranty. This warranty comes at no charge to our customers and we have the financial strength and integrity to back it up. Our warranty is an extension of who we are and demonstrates the quality of our builds.

• 10-Year Structural, parts & labor on all Sauber manufactured components
• 10-Year Galvanized finish warranty
• 3-Year Total parts & labor coverage
• All warranty support provided directly from Sauber Mfg. Co.
• Customer labor reimbursement @ $80/hour

Drawings

Solid model engineering drawings submitted with bid must include trailer detail and will be approved prior to production. Bids submitted without solid model drawings cannot be evaluated.
