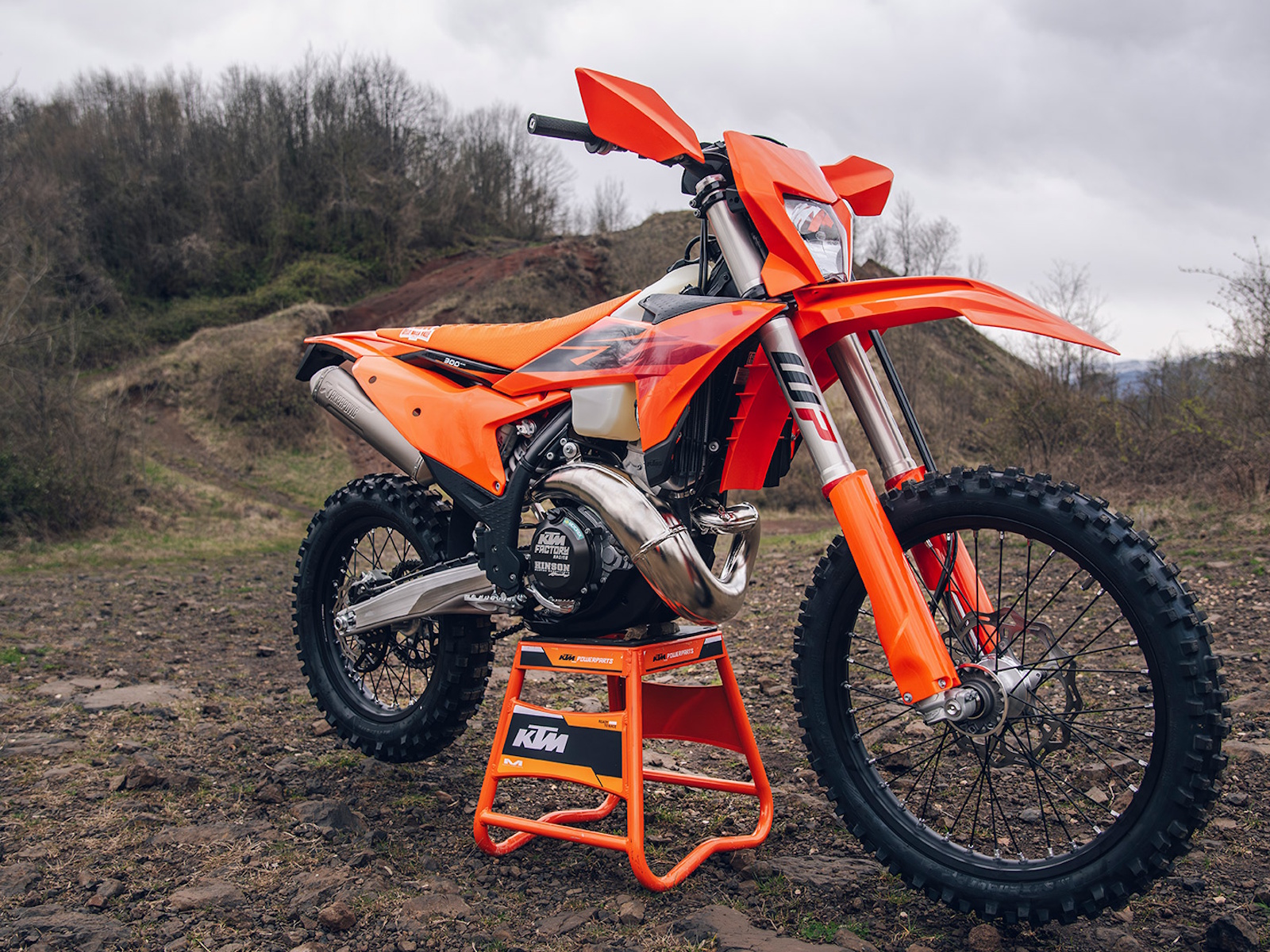

2027 KTM 300 XC-W

LEGENDARY ENDURO

The KTM 300 XC-W maintains legendary status as the undisputed King of enduro. Not only does it have the most recognized title at the sharp end of hard enduro, it's still unmatched when it comes to 2-stroke ingenuity, fury, and downright fun. With a bulletproof, fuel-injected 2-stroke engine churning out masses of low-down torque and top-end fury, it's the ideal companion when tackling challenging terrain.

Preparation makes Perfect

Switchgear

On the right side of the handlebar, you'll find a sleek start/stop switch taken directly from our motocross machines, and on the left, an optional Map Select switch can be installed that allows riders to choose between Map 1 or Map 2.

Adjustability

Getting READY TO RACE has never been easier. The KTM Enduro range boasts a tool-free suspension setup at both ends. At the rear, our legendary, race-winning PDS technology features hand-adjustable dual compression controls, allowing riders to adjust high- and low-speed settings in a matter of seconds. On the front, the forks are also easily adjusted thanks to hand-adjustable clickers on the bottom of the fork shoe and on the fork top cap, making changing settings on the fly as easy as twisting the throttle.

Air filter box

The air filter box is designed to ensure maximum airflow with minimal water intrusion. Precision in how the inlet ducts are positioned is aimed at preventing air deformation and maintaining filter protection. An enduro-specific splash protector under the airbox prevents water or dirt from splashing up from the rear wheel, while the Twin Air filter and air filter support design features a simple fail-proof mounting system for a secure and accurate filter installation. All this ensures the air filter is easily accessed, without tools, for fast trail-side maintenance.

Fuel Tank

The transparent, polythene (XPE) fuel tank is a signature element of the KTM Enduro lineup. Having undergone thorough race testing in everything from the GNCC to the hardest of FIM hard enduros, these tanks are built, well, like tanks! A one-piece fuel pump and filter manage fuel supply, while servicing is made extra simple with easy fuel filter access.

Benchmark lap

Engine

The 300cc 2-stroke powerplant not only brings choice into the Enduro category but remains the ideal choice for Enduro riders wanting maximum power and torque at the least possible weight. Another reason why the KTM 300 XC-W engine sets the benchmark in the competitive Enduro E3 class and hard enduro races all over the world.

Throttle Body Injection

The KTM ​2-stroke ​Enduro models ​feature​ electronically​-controlled Throttle Body Injection​ - or TBI. The ECU​​ and Keihin​ ​39mm throttle body​​calculate​ the ​ideal air-fuel mixture by constantly analyzing different parameters. A protection cap is used for the CPC fuel connector on all models to add additional layer of protection. While a small fuel filter in the fuel hose stays in place and is easily accessible.

Cooling System

Keeping cool is made even easier, thanks to a new radiator closure with a standard thread opening. This makes it quicker and easier to open the radiator cap for top-ups. An optional radiator fan can also be fitted for additional cooling.

Offroad Control Unit

The Offroad Control Unit - or OCU - is located under the seat and replaces all the electronic fuses and relays. All outputs are switched depending on signals from the voltage regulator and the ECU continuously. In the event of over-current, outputs are deactivated individually. This makes for easy error detection as the status of each output is indicated by a red or green LED light. This means diagnosing an electrical issue out on the trail is as easy as lifting the seat, and there's no more need to carry fiddly fuses.

Selectable Engine Maps

Designed for easy operation, the map select switch is available as an optional extra on all KTM XC-W models and allows for the easy selection of 2 unique engine maps. Map 1 is the standard, more linear, and predictable power map, while map 2 is a more aggressive map for added throttle response and more crisp, explosive power output.

Battery & Wiring Harness

As with the rest of the 2-stroke Enduro range, the KTM 300 XC-W is fitted with a proven and reliable electric start system. Powered by an ultra-lightweight 2 Ah lithium-ion starter battery, it provides a safe, reliable starting time and time again, while the wiring harness has most of the electrical components carefully positioned under the seat for easy accessibility.

On the charge

Frame

Specifically engineered for longitudinal rigidity, the KTM Enduro range is engineered around a gloss-black powder-coated frame providing exceptional rider feedback, energy absorption, and high-speed stability. This is achieved by repositioning the rotating masses in the frame along with a forged steering head connection. The footrest mounts also feature a slim design for less risk of hooking up. And when the ride comes to an end, a forged one-piece side stand ensures your enduro weapon stands proud.

Subframe

An ultra-light lightweight subframe takes charge at the rear of the main frame, featuring a 2-part polyamide and reinforced aluminum construction. With the help of computational dynamics, a specific rigidity was engineered into the subframe, to deliver outstanding handling and rider feedback. This compact subframe design also boasts the the ability to bend and flex in the event of a crash, rather than break, with the subframe fully integrating electronic components, without any extra need for brackets, holders, or unnecessary fixtures.

WP XACT Closed-cartidge Fork

A 48 mm WP XACT Closed Cartridge spring fork provides fast and consistent damping, with optimized oil flow. This means these forks ensure unmatched performance at every level. Fork protection rings also protect against dirt intrusion. But, best of all, the fork allows for full adjustment of compression and rebound without the need for any tools.

WP XACT Shock

Remaining a hallmark of KTM Enduro weaponry, an PDS rear shock concept improves the anti-squat behaviors of the chassis. This remains the most reliable and maintenance-friendly option for competitive enduro racing. Moreover, a lightweight WP XPLOR PDS rear shock takes charge at the rear.

Wheels and Tires

The KTM 300 XC-W rolls on a set of high-strength GIANT alloy wheels coupled to CNC-machined hubs and aluminum nipples. These are wrapped in a set of ultra-grippy Dunlop AT82 tires providing exceptional traction in all conditions.

Keeping you going

Stability

The KTM XC-W range remains rock-solid at any speed thanks to a forged steering head connection and CNC-milled triple clamps. Made from high-grade aluminum, these feature optimally tuned steering stem stiffness, perfect alignment of the fork tubes, and precise geometry of the fork clamps to ensure highly responsive and smooth fork action - not to mention unwavering stability for those ultra-fast flat-out special stages.

LED headlight

Lighting the way forward, the KTM Enduro range features an LED headlight unit and light mask. The mask itself features improved triple clamp protection against roost and does away with the rubber mounting straps for improved fitment. Most importantly, the LED lighting unit provides serious illumination, making riding in the dark a completely new experience.

Keeping you going

Graphics

The KTM Enduro range steps forward with a bold new colorway. Dominant orange is paired with black and red accents, delivering a distinctive and unmistakably READY TO RACE look. In-mold graphics guarantee long-lasting finish, while a black high-grip seat cover enhances rider control. Matching textures across the frame protectors, tank spoilers, and bar pad create a unified, performance-driven aesthetic.
