Steamboat Powersports Showroom / Trailer
2026 Horizon RDZ 17.9K GN HOIST 16 ft
Get in Touch
Description

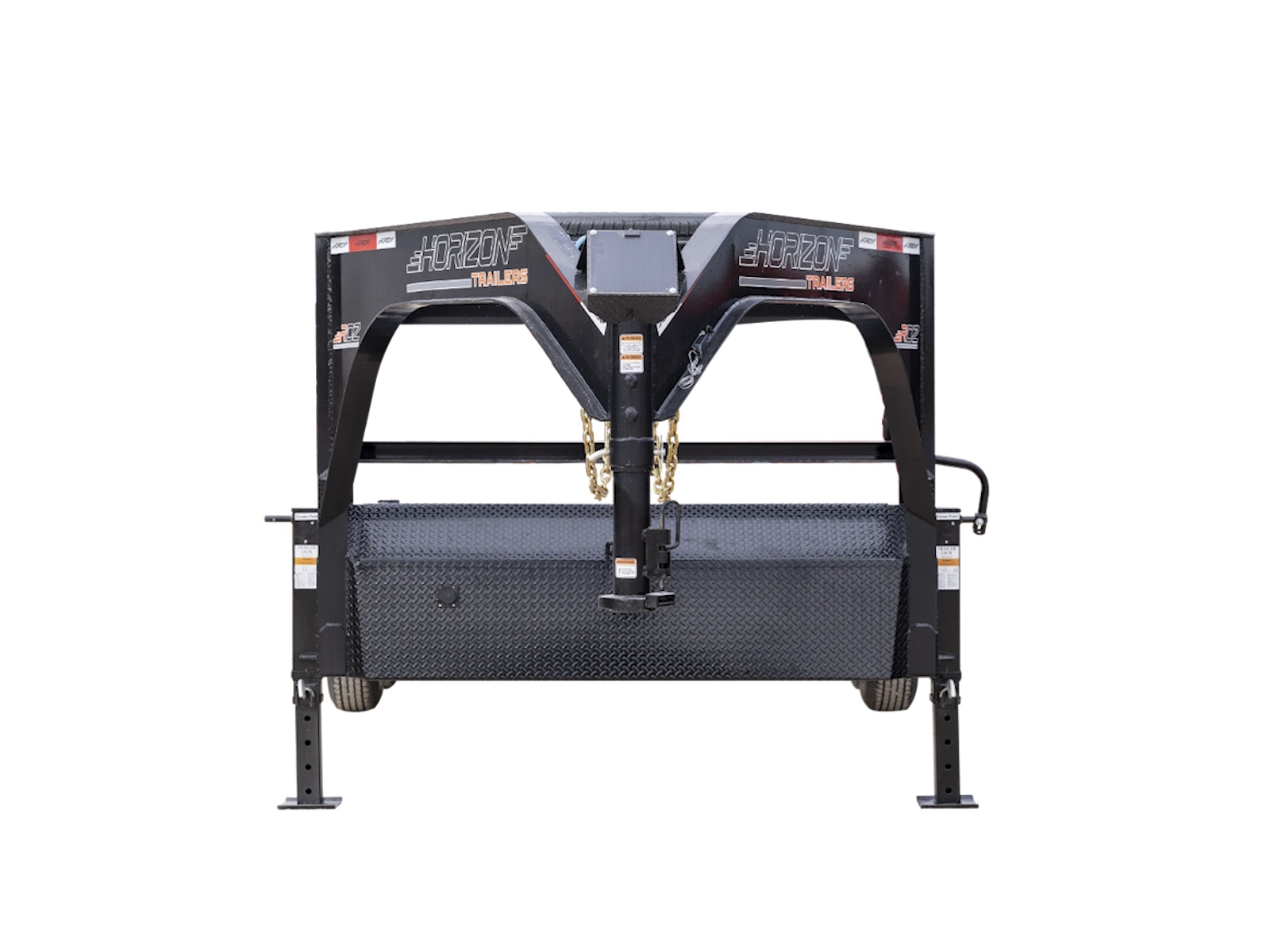

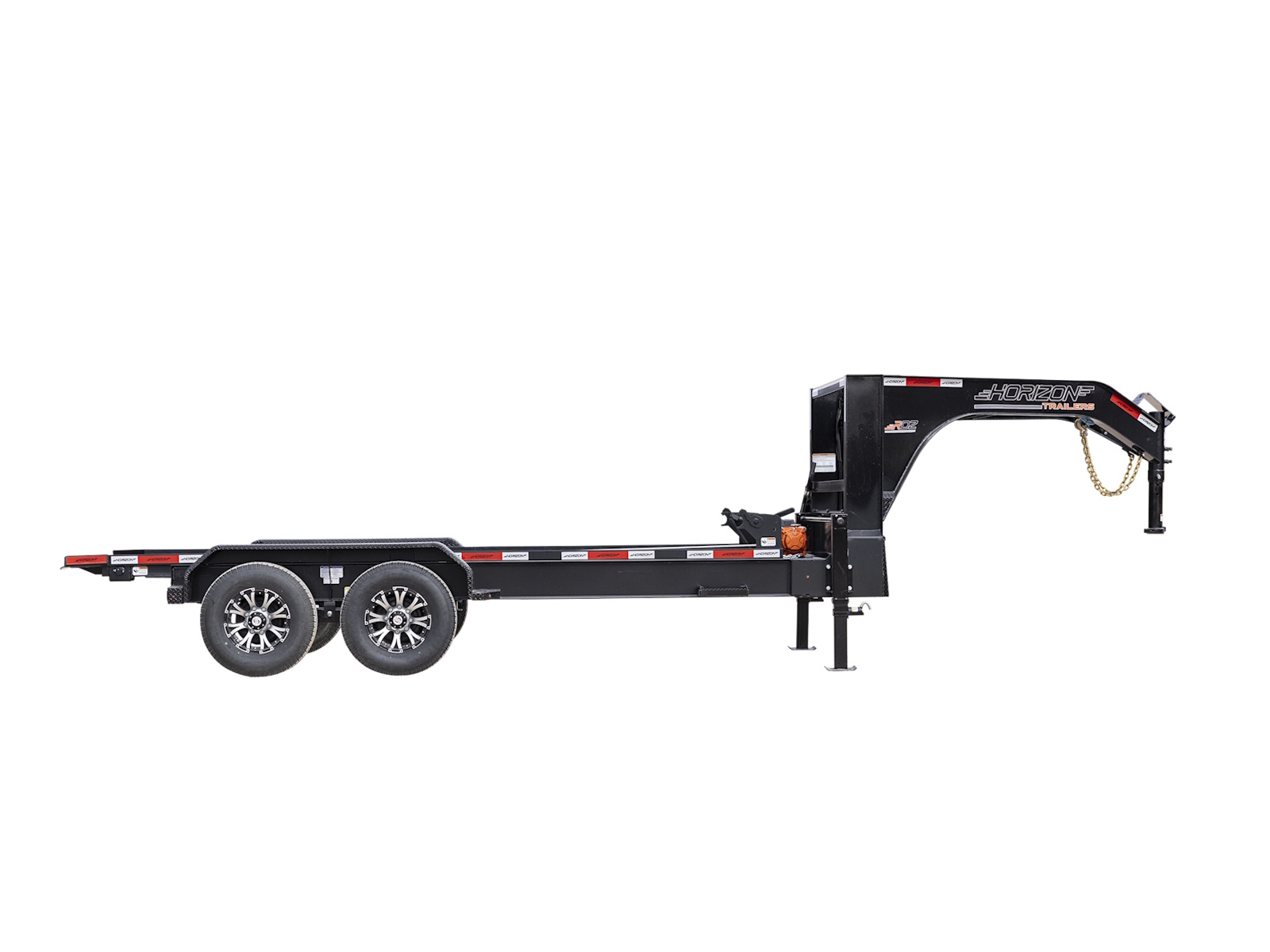

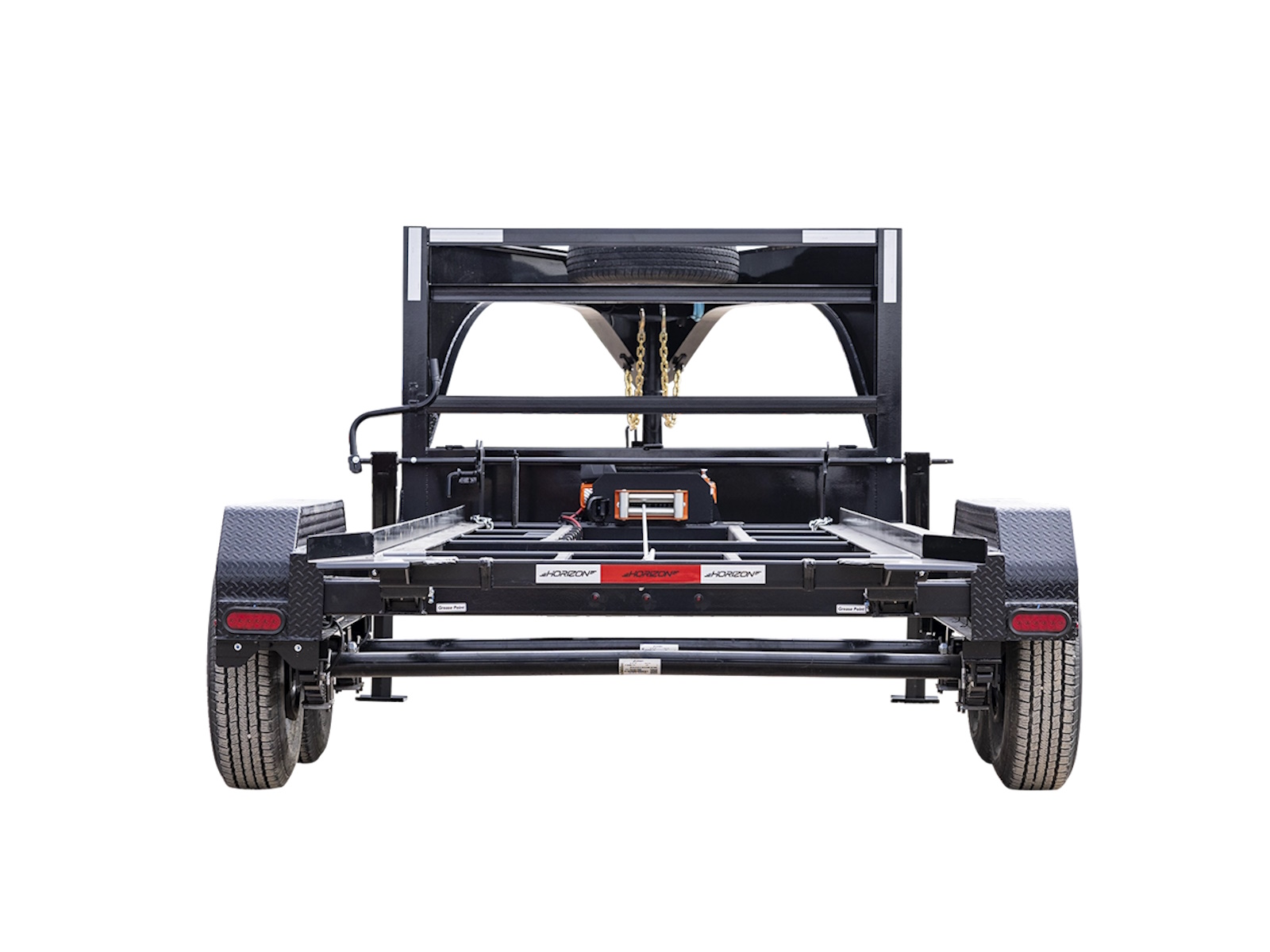

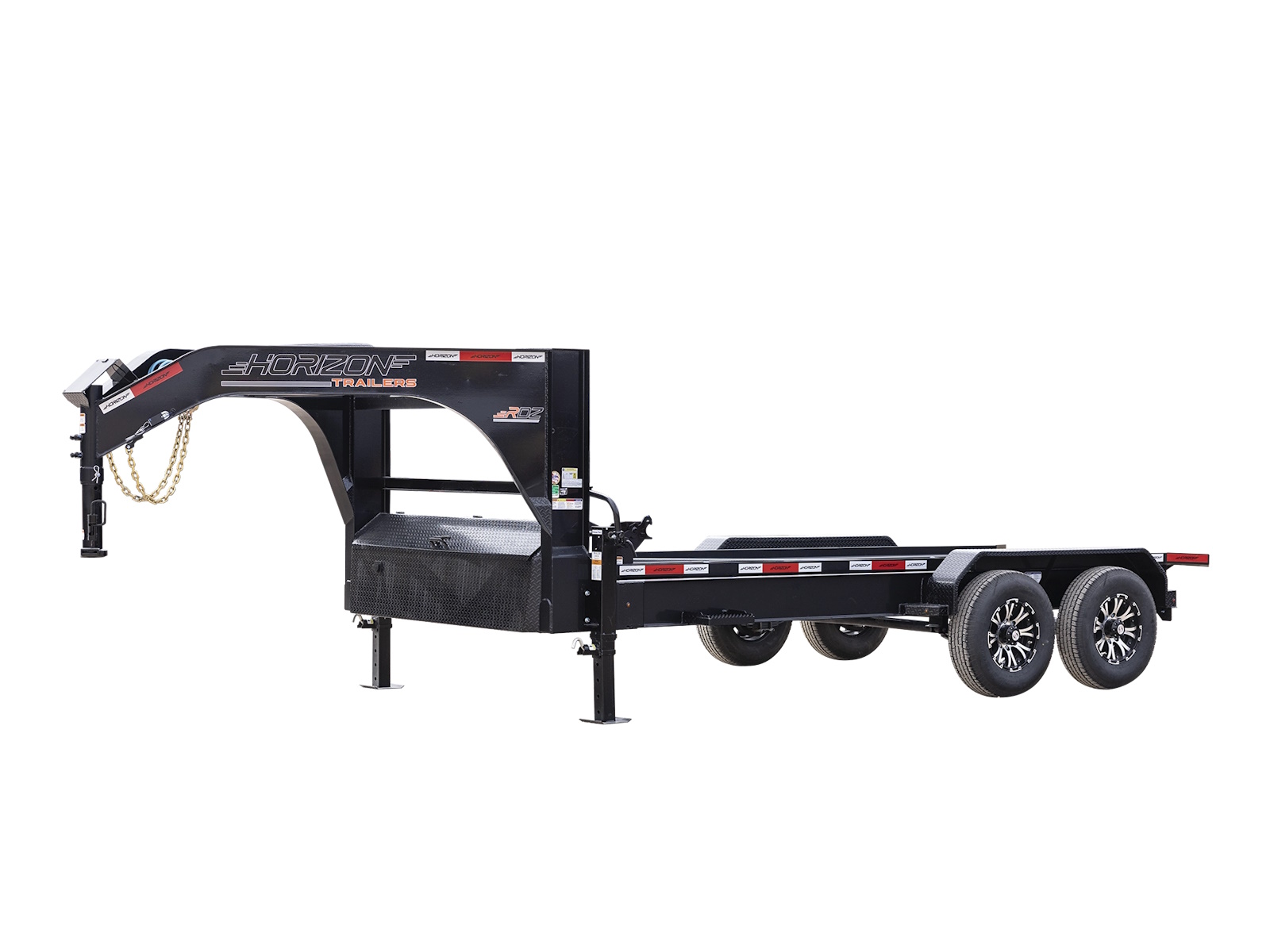

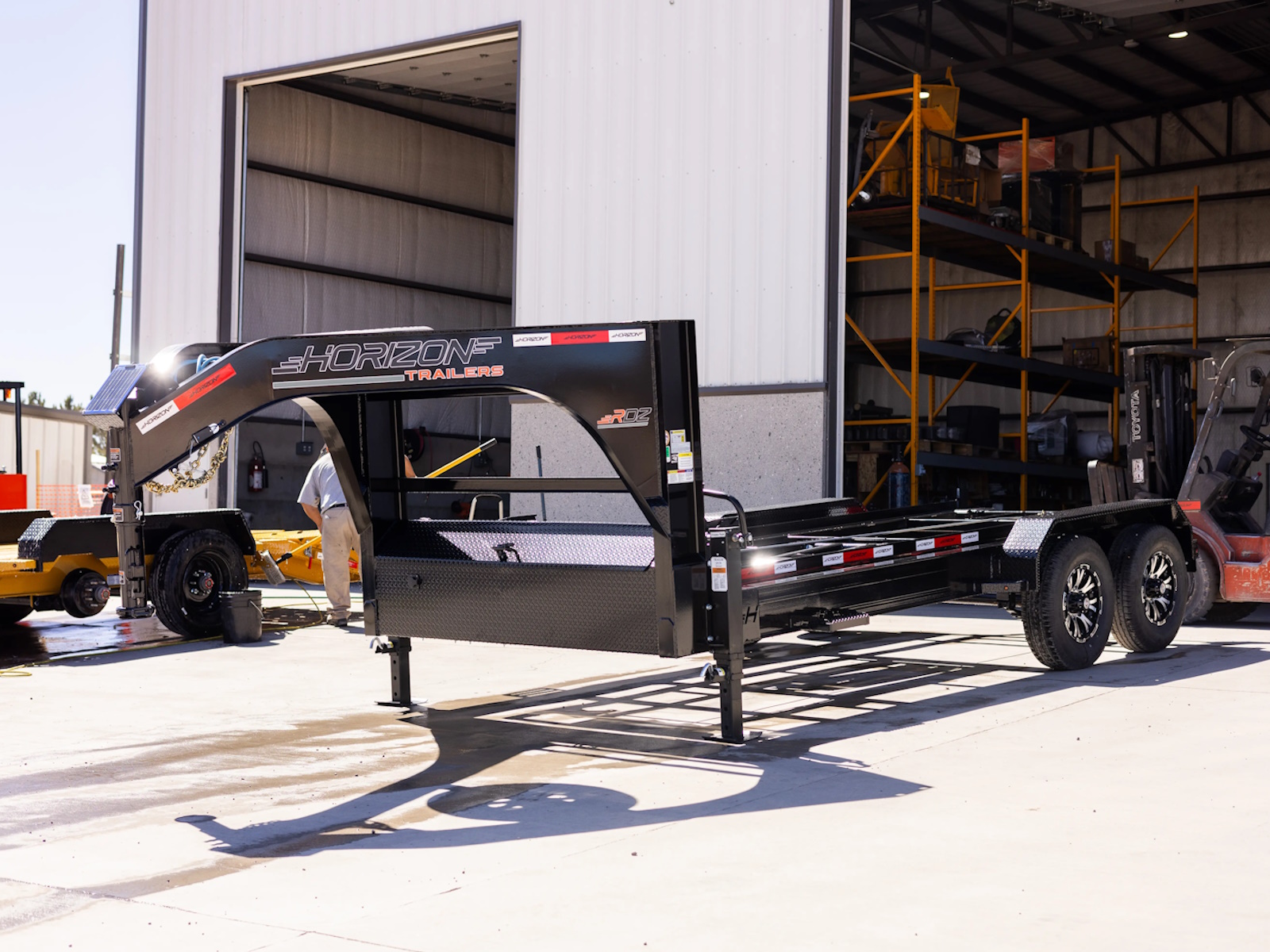

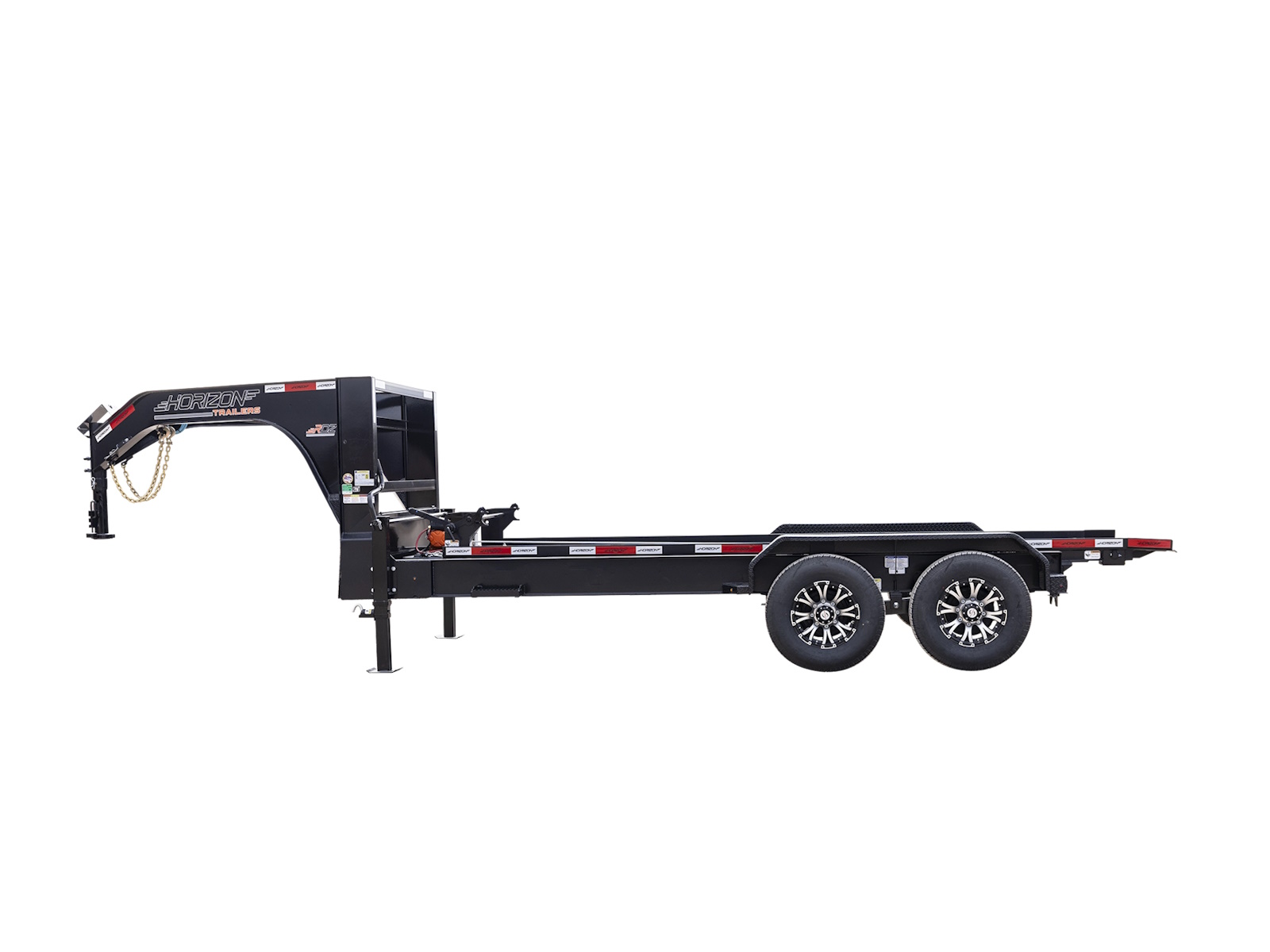

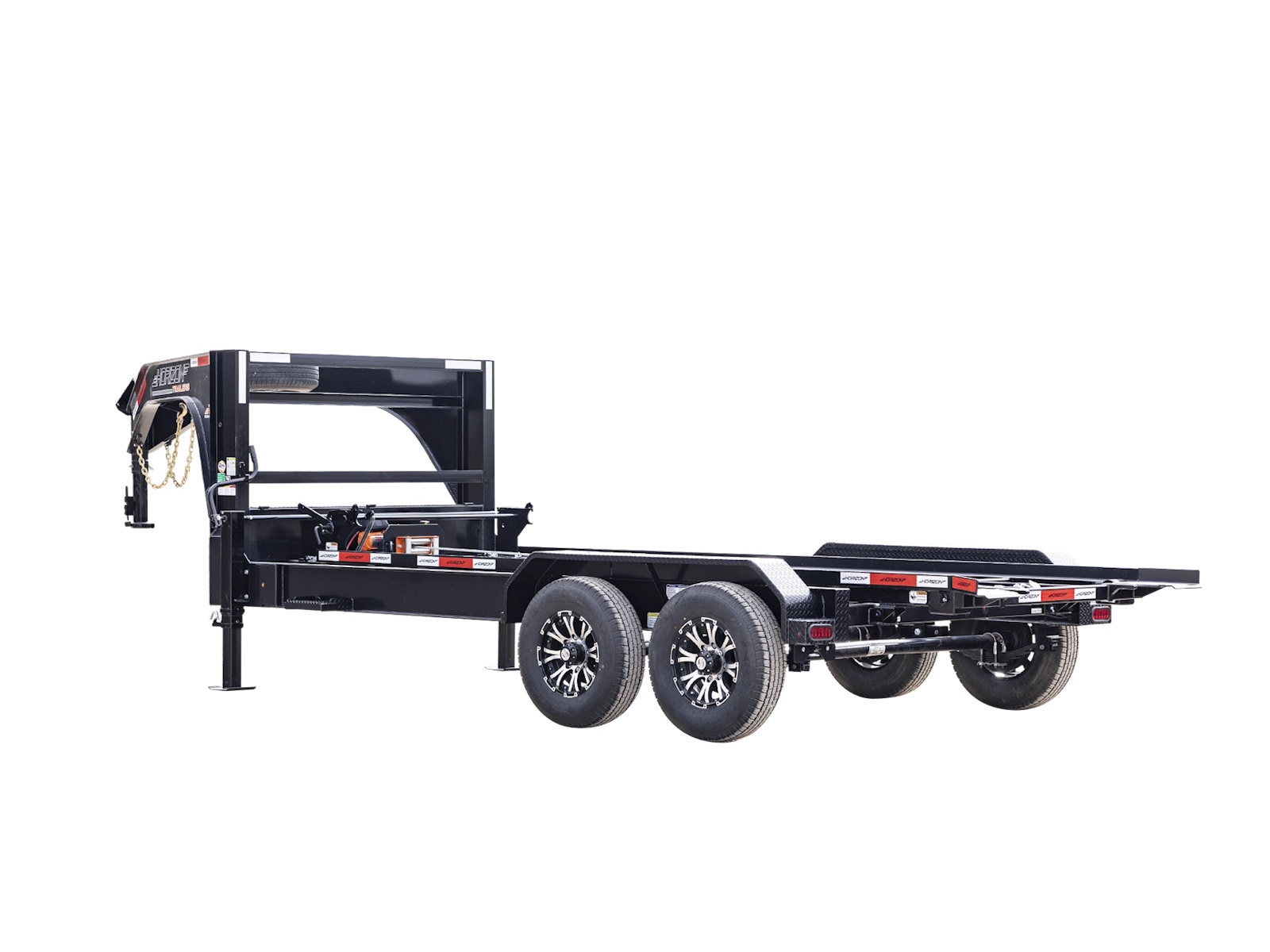

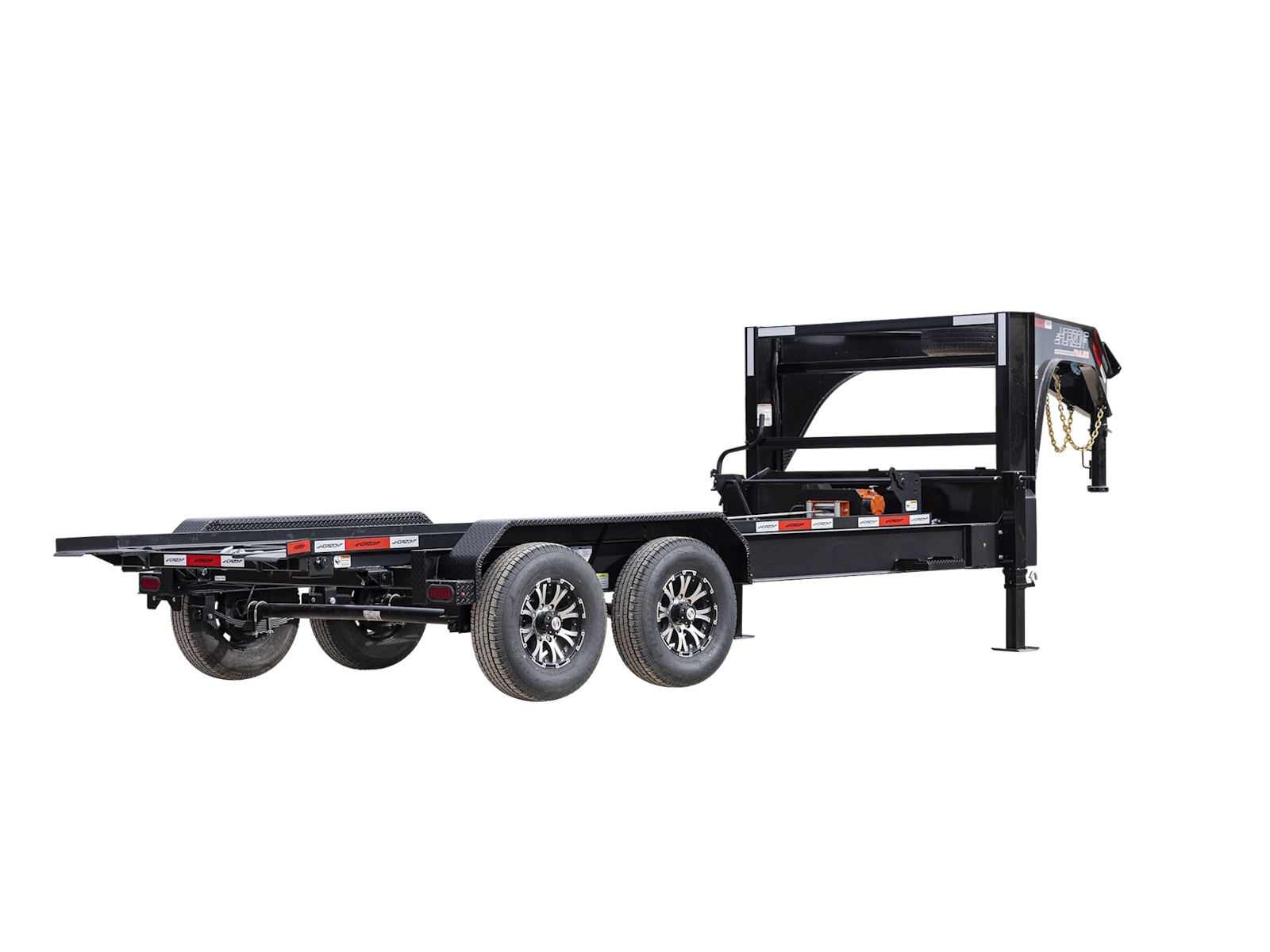

2026 Horizon RDZ 17.9K GN HOIST 16 ft
Experience unmatched durability and functionality with the RDZ 15.7K Telescopic Roll-Off Trailer. Built with a robust 10" I-Beam frame, a Mega Lockable Toolbox, and a 17.5K Winchmax winch, this trailer is designed to handle your toughest jobs. Available in 14' and 16' lengths with a GVWR of 15,700 lbs.
Engineered Strength and Performance
BUILT FOR DEMANDING JOBS
The RDZ 15.7K Telescopic Trailer offers unmatched durability with its 10" I-Beam frame and 7k dual axles. Featuring a hydraulic telescopic lift system, 17.5K Winchmax winch, and premium powder-coat finishes, it ensures reliability and style. Choose between 14' and 16' lengths and take on heavy-duty tasks with confidence.
Designed for Efficiency
MAXIMIZE YOUR LOAD CAPACITY
This trailer is your ultimate workhorse, with a 15,700 lbs GVWR and 30" deck height for efficient loading. Equipped with a Mega Lockable Toolbox and Interstate 27 batteries, it keeps essentials secure. DOT-approved LED lighting and all-weather wiring make it ideal for any environment. Choose functionality and style with multiple vibrant colors available.
Powerful Features for Every Job
READY FOR THE TOUGHEST CHALLENGES
The RDZ 15.7K Telescopic Trailer includes a 2-button hydraulic system for effortless operation, a 51° dump angle, and a 70" high tongue for stability. Upgrade with optional features like electric tarps and wireless remotes for added convenience. Invest in strength, style, and performance tailored to your needs.
Features May Include:
Highlights
- 0" I-Beam (12 lbs/ft)
- Lockable Toolbox (Houses Battery and Pump)
- Robust Toolbox Latch
- 2" x 3" x 7ga. Tubing Bed Frame
- 3" x 4" x 1/4" Angle Iron
- Weld On Spare Tire Mount
- Neckboss 10" Engineered I-Beam
- Side Step On Both Sides
Options:
Base Model
- RDZ2GN14T-15.7KRDZ GN 14' 15.7K Tandem Axle Telescopic Roll Off Dump Trailer
- RDZ2GN16T-15.7KRDZ GN 16' 15.7K Tandem Axle Telescopic Roll Off Dump Trailer
Tongue
- RDZ-10412k Ram 2 Speed Jacks
- RDZ-10612k Hydraulic Jacks
- RDZ-706Bracket For Electric Tarp Kit Gn (contains pair of fender brackets)
- RDZ-3026" Gn Riser Increase
- 503-007Shocker Hitch 2,5/16" Gn Coupler (30,000 lbs)
Chassis
- RDZ-61310" I-Beam (15 lbs/ft) Frame Upgrade
Dump
- 511-0032' Extension Bars
- 511-0044' - 6' Adjustable Extension Bars
- RDZ-708Electric Tarp Kit 14', 16' Dump
Lift System
- 509-005Tuff Wireless 2 Button Remote (Hoist or Telescopic)
- 509-014Tuff Wireless 4 Button Remote (Telescopic - Hydraulic Jacks)
- 509-021Tuff Wireless 4 Button Remote (Telescopic - Winch)
8 button remote option*6 buttons in use only*
- 509-008Tuff Wireless 8 Button Remote (Telescopic - Winch - Tarp)
- 509-024Tuff Wireless 8 Button Remote (Telescopic - Hydraulic Jacks - Winch)
- 509-027Tuff Wireless 8 Button Remote (Telescopic - Hydraulic Jacks - Tarp)
8 button remote option* all buttons in use*
- 509-022Tuff Wireless 8 Button Remote (Telescopic - Hydraulic Jacks - Winch - Tarp)
- 504-00717.5k Synthetic Rope Upgrade
- 504-00820k Steel Cable Winchmax Winch
- 504-00920k Synthetic Rope Upgrade
Running Gear
- 501-0024 - ST235/85R16 14 Ply Tires Singles (4,400 lbs)
Aluminium wheels options
- 501-0034 - Aluminum Rims w/ ST235/80R16 10 Ply Tires (3,520 lbs)
- 501-0044 - Aluminum Rims w/ ST235/85R16 14 Ply Tires (4,400 lbs)
Spare tire options
- 501-103ST235/80R16 10 Ply Tire Single (3,520 lbs)
- 501-104ST235/85R16 14 Ply Tire Single (4,400 lbs)
- 501-105Aluminum Rims w/ ST235/80R16 10 Ply Tire (3,520 lbs
- 501-106Aluminum Rims w/ ST235/85R16 14 Ply Tire (4,400 lbs)
Electrical and Lighting
- RDZ-3052 - Cargo Lights Mounted On Riser
Finish
- RDZ-80514ft Zinc Primer Undercoat
- RDZ-80616ft Zinc Primer Undercoat
Info
Industry
Trailer
Make
Horizon
Model
RDZ 17.9K GN HOIST
Trim
16 ft
Year
2026
MSRP
N/A
Category
Roll Off Trailer
Subcategory
Roll Off Trailer
Specs
Length
16 ft | Tongue: 94 in Long (From Behind Riser)
GVWR
15,700 lbs, 17,900 lbs | GAWR: 7,000 lbs, 8,000 lbs | Main Frame: 10 in I-Beam (12 lbs/ft)
Width
Deck: 61 in
Frame
2 in x 3 in x 7 ga. Tubing Bed Frame | Wiring: Double Insulated Wiring Harness
Fenders
14 ga. Diamond Plate Steel Fenders
Suspension
Spring
Tires
7K Axles: Radial Tires ST235/80R16 10PR 3,520 lbs | 8K Axles: Radial Tires ST235/85R16 14PR 4,400 lbs
Coupler
Adjustable 2-5/16 in Gn Coupler (30,000 lbs)
Crossmembers
2 in x 3 in x 7 ga. Crossmembers
Height
Deck: 30 in | Tongue: 70 in High (From Underneath Neck)
Axles
Count: 2 | 7K Axle: 7k Lippert Electric Brake Auto Adjust EZ Lube Spring Axles 8 On 6.5 in | 8K Axle: 8k Lippert Electric Brake Auto Adjust Oil Bath Spring Axles 8 On 6.5 in
Wheels
Rims: 16 in Black Mod Wheels
Safety Chains
3/8 in Grade 70 Safety Chain w/Clevis Hook (2 each) | For Roll Off: 2 - 1/4 in 30 Grade Chains w/Clevis Hook | Reflective: 3M Dot Compliant Reflective Tape
Tongue
Neckboss 10 in Engineered I-Beam | Spare: Weld On Spare Tire Mount
Pump
KTI 12V Hydraulic Pump
Finish
Paint type: Powdercoat | Prep: Steel Grit Blasted | Colors: Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue, Sunset Orange | Style: 2 Tone Colors Available, Chassis / Dump
Notes
Front Jack: 2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs) | Toolbox: Mega Lockable Toolbox Houses Battery & Pump | Loading Angle: 58° | Dump Angle: 51°
Battery
2 - Interstate 27 Deep Cycle Batteries
Top Rail
Bottom Rail Deck Width: 61 in
Lights
DOT Approved Tecniq LED Lights
Controller
14 ft Control Cable
Warranty
Axle: 6 Year Lippert Spring Axle Warranty | Trailer: Three (3) Year Frame One (1) Year Parts Warranty
