2024 Midsota FBGN Series NFB36-GN-230
Get in Touch
Description
2024 Midsota FBGN Series NFB36-GN-230
The deckover flatbed series of trailers from Midsota™ Manufacturing is high-quality crossed with great value. These commercial-grade trailers are built to last with Midsota™-exclusive features to help you get the job done.
Features may include:
- Square Torque Tube
- Self Adjusting Electric Brakes
- 16'' E-Range 10 Ply Tires (235/80R16)
- Rub Rail & Stake Pockets
- Treated Wood Decking

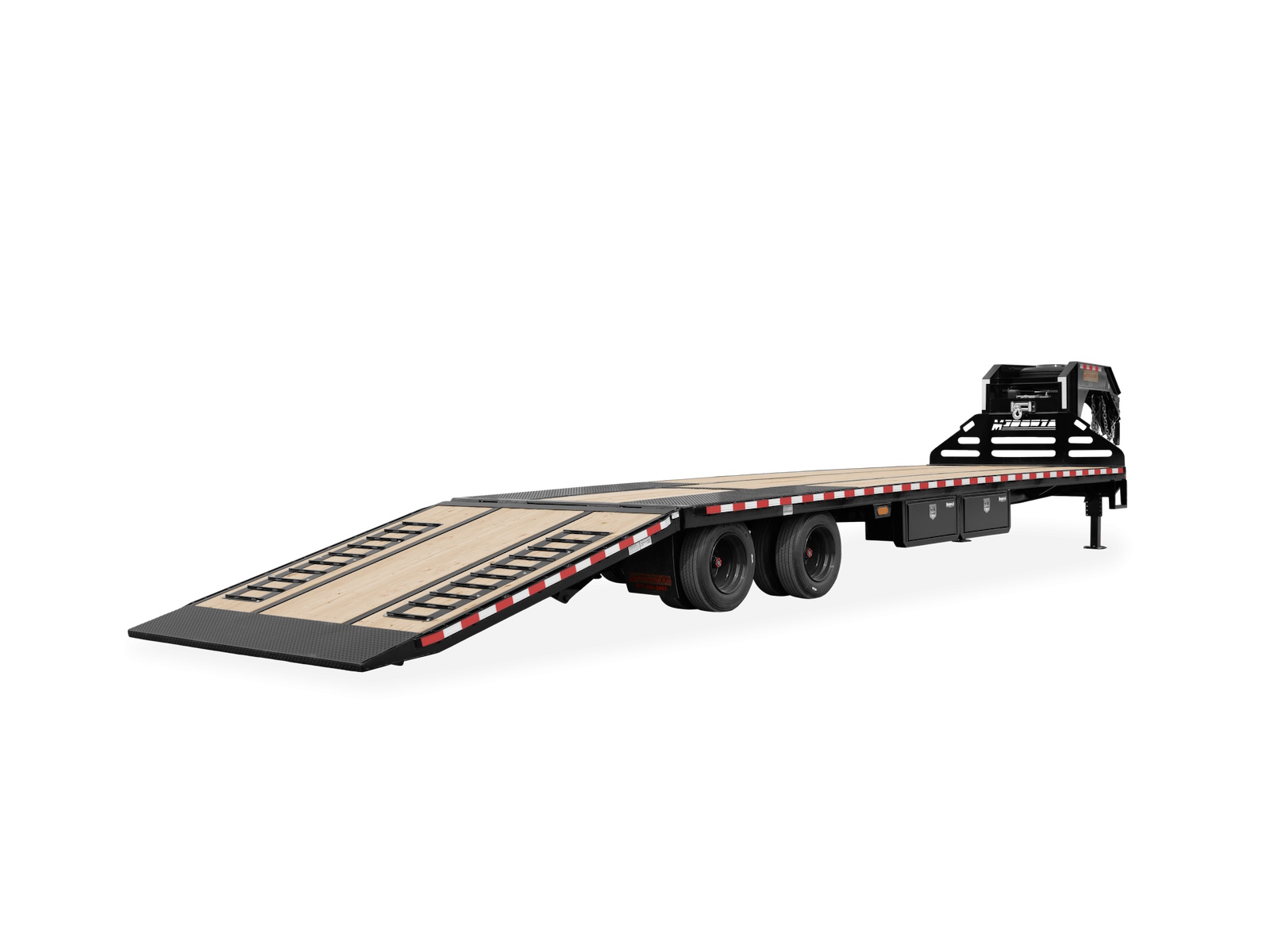

- 5' Beavertail With 2 Fold Over Wedge Ramps

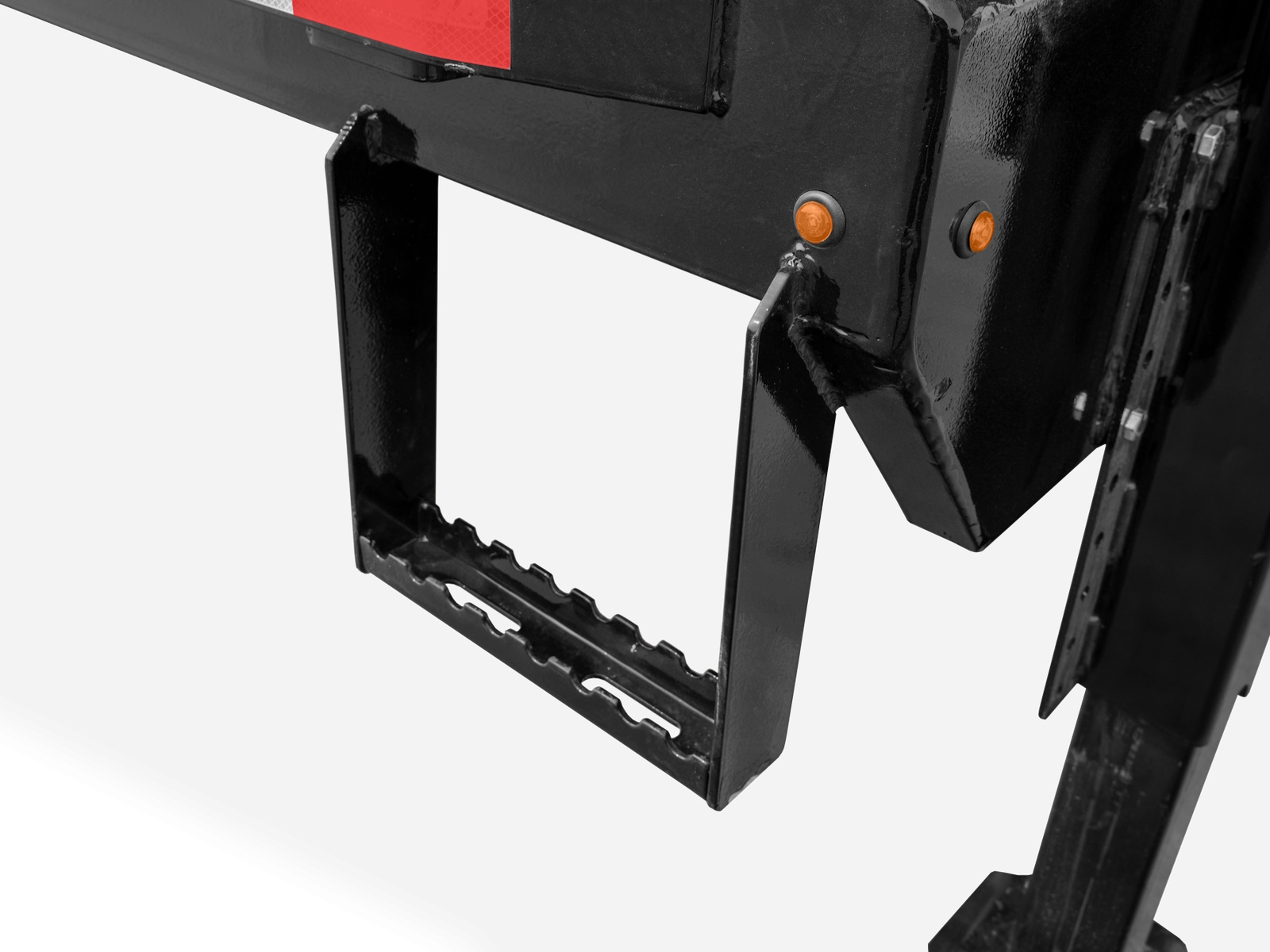

- Gooseneck Step (1 per side)
- Toolbox in Gooseneck Frame
- No Exposed Wiring
- Cold Weather 7 Way Plug (-85°)
- LED Lights

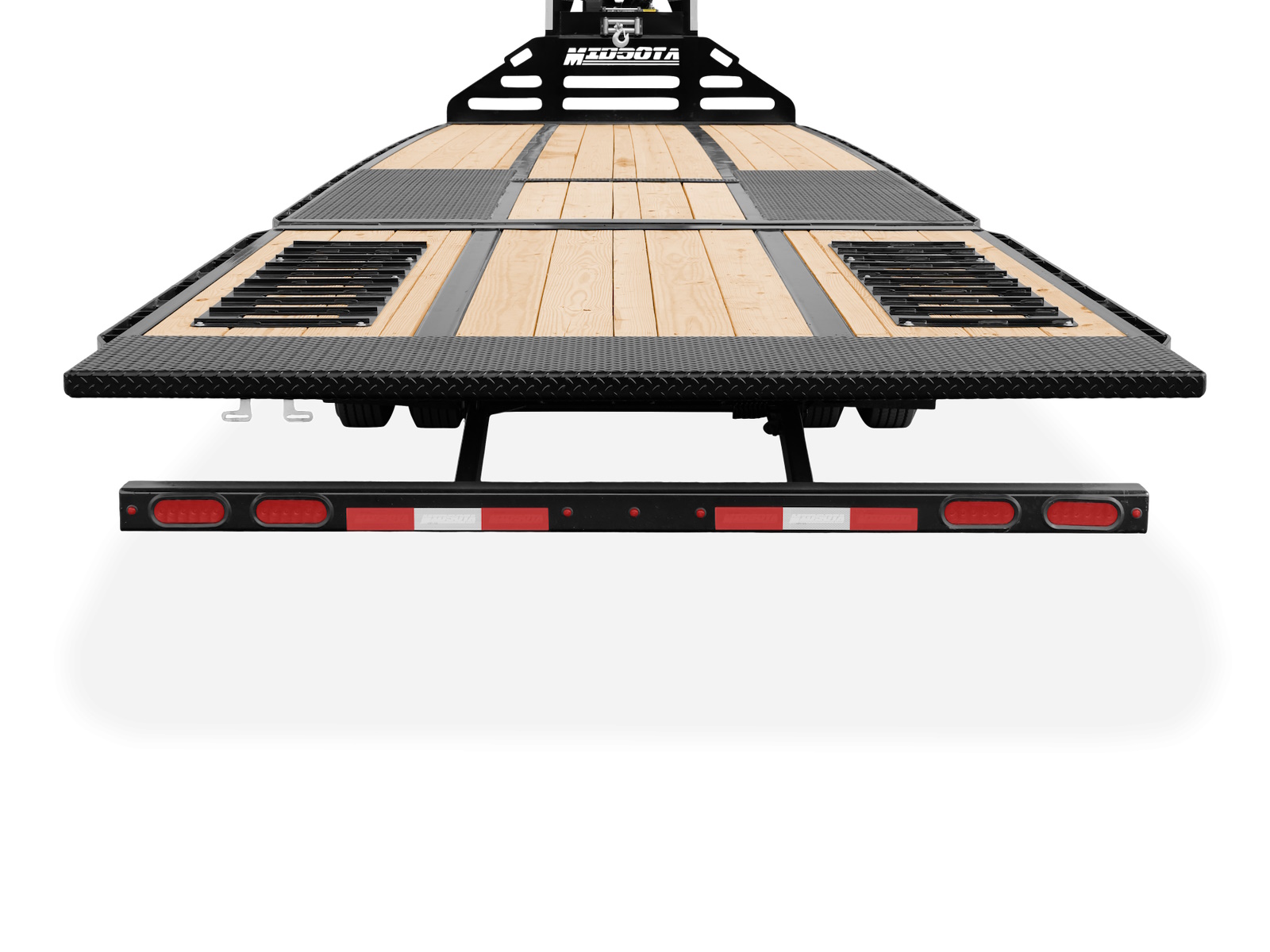

- Dual Tail Lights
- Midship Turn Signals
- Two (2) 12K Dual Speed Spring Return Jacks
- 2-5/16'' Adjustable Gooseneck Coupler
- PPG Polyurethane Primer and Paint
- 5 Year Frame Warranty
Info
Industry
Trailer
Make
Midsota
Model
FBGN Series
Trim
NFB36-GN-230
Year
2024
MSRP
N/A
Category
Trailer
Subcategory
Flatbed Trailer
Specs
GVWR
23000 LBS | GAWR: 10000 LBS
Dry Weight
Curb Weight: 8380 LBS
Max Load
Payload: 14620 LBS
Frame
Main Frame: High Strength Fabricated I-Beam
Crossmembers
Grade 50, 3" Channel
Coupler
2-5/16" Adjustable Gooseneck Coupler
Axles
10k Spring Dual Wheel Axles
Suspension
Slipper Spring
Tires
16" E-Range 10-Ply Tires (235/80R16)
Wheels
16" 8-Bolt Steel Black
Notes
Decking: 2" x 8" Green Treated Decking
Lights
LED Lights | Dual Tail Lights | Mid-Ship Turn Signals
Electrical
Cold Weather 7-Way Plug (-85)
Finish
PPG Industrial Grade Poly Primer & Paint
Length
Overall: 546"
Width
Bed: 102"
Height
Deck: 34" | Coupler Height: 32.25" - 40.25"
Ramps
2 Fold Over Wedge Ramps
